Present status > 2003 run > 2001-2002 run |
|||||
2001-2002 |
||

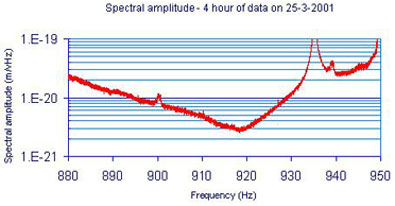

The picture above shows the experimental strain sensitivity of EXPLORER in 2001 (input noise spectral amplitude in units of m Hz-1/2). The peak sensitivity was about 3 10-21Hz-1/2. The spectral amplitude is better than 1 10-20Hz-1/2 over a band of about 35 Hz. The peak at 935 Hz is a calibration reference signal fed into the d.c. SQUID amplifier to monitor the gain of the electronics.
|
