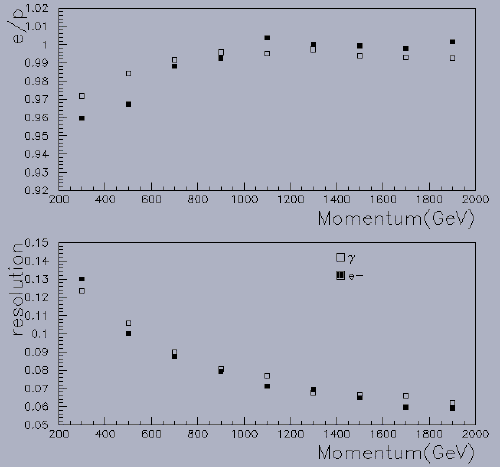

E/P as a function of the energy of
gammas open squares and electrons filled squares.

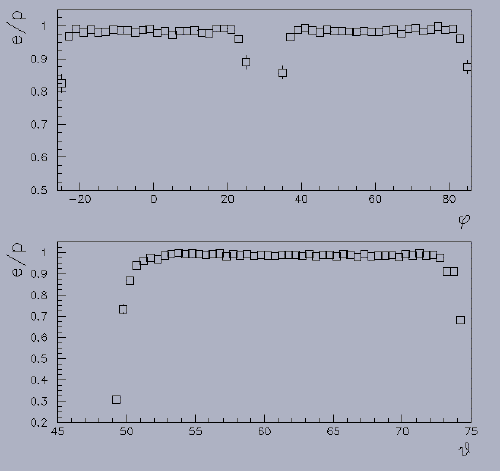

E/p for electrons as a function of polar and azimuthal
angles.

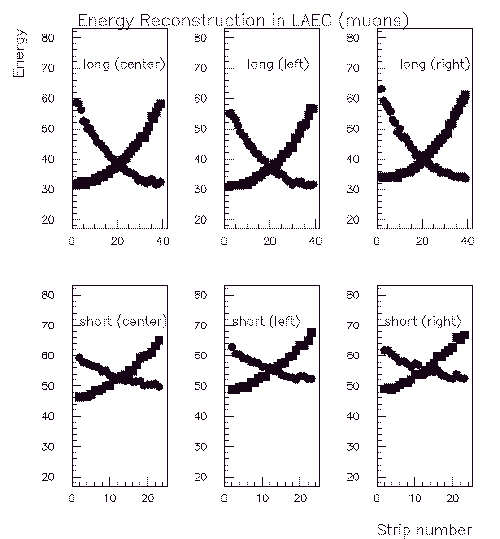

Muon scan of calorimeter, with measurement of Left and Right ADC responses
as a function of position.
Reconstructed Muon response as a function of position. Triangles are with
account of the shape correction for muons.

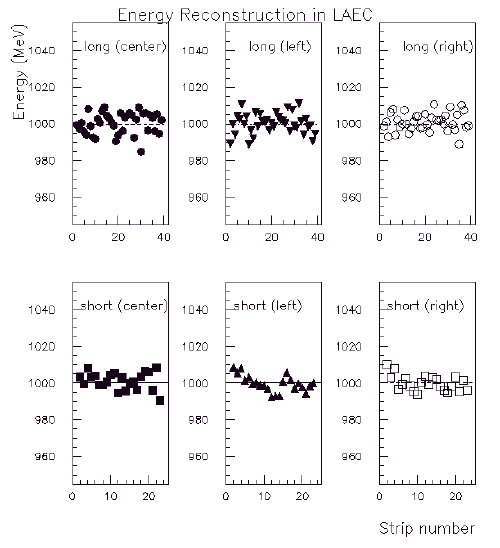

The uniformity of the response of LA Calorimeter
response to 1 GeV electrons

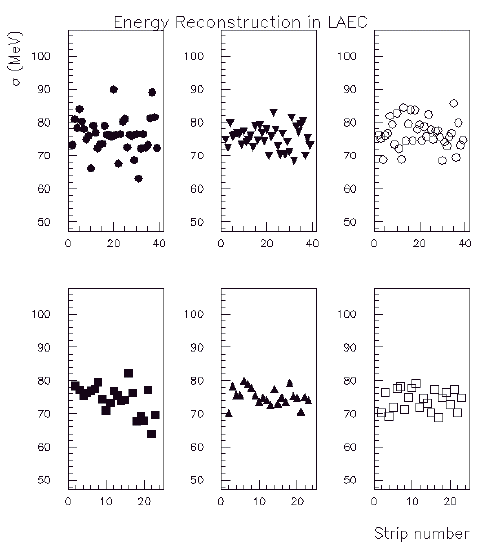

Energy resolution of reconstructed electrons as a function of position.

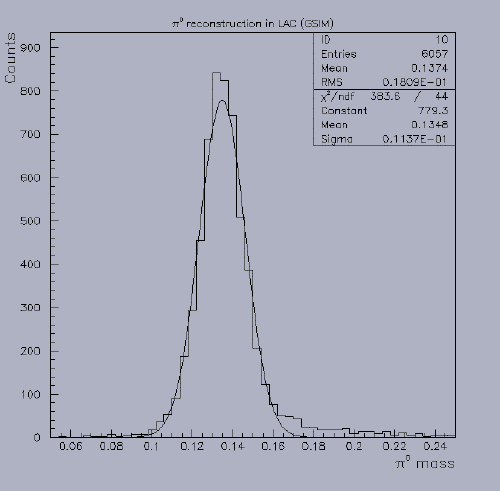

Pi-0 invariant mass distribution.
(10000 pions uniformly generated in GSIM in the LAC acceptance).
