KLOE Database

Schema: KLOEMAPS

• KLOEMAPS.BOARD_MAP_VME
• KLOEMAPS.BOARD_MAP_AUX
• KLOEMAPS.DMAP_CAL
• KLOEMAPS.DMAP_CHAMB
• KLOEMAPS.DMAP_QCAL
• KLOEMAPS.DMAP_TRIGGER
• KLOEMAPS.DMAP_FIO
• KLOEMAPS.ROCK_MAP
• KLOEMAPS.DISH_MAP
• KLOEMAPS.TORTA_MAP
• KLOEMAPS.DAQ_DFC
• KLOEMAPS.DAQ_RC
• KLOEMAPS.DAQ_L2
• KLOEMAPS.DAQ_TRIGGER
• KLOEMAPS.DAQ_FARM

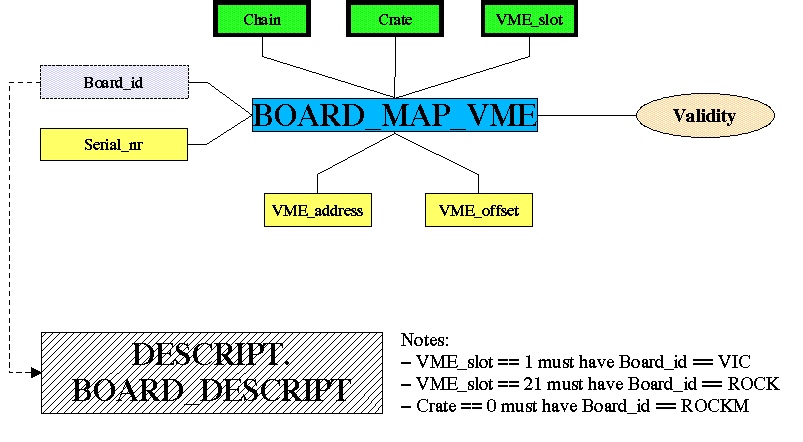

KLOEMAPS.BOARD_MAP_VME Field Type Nullable CHAIN SMALLINT N CRATE SMALLINT N VME_SLOT SMALLINT N START_OF_VALIDITY INTEGER N INSERT_TIME TIMESTAMP N BOARD_ID SMALLINT N VME_OFFSET INTEGER N VME_ADDRESS INTEGER N UPDATE_USER_ID SMALLINT Y UPDATE_TIME TIMESTAMP Y SERIAL_NR INTEGER Y INSERT_USER_ID SMALLINT N END_OF_VALIDITY INTEGER Y

---

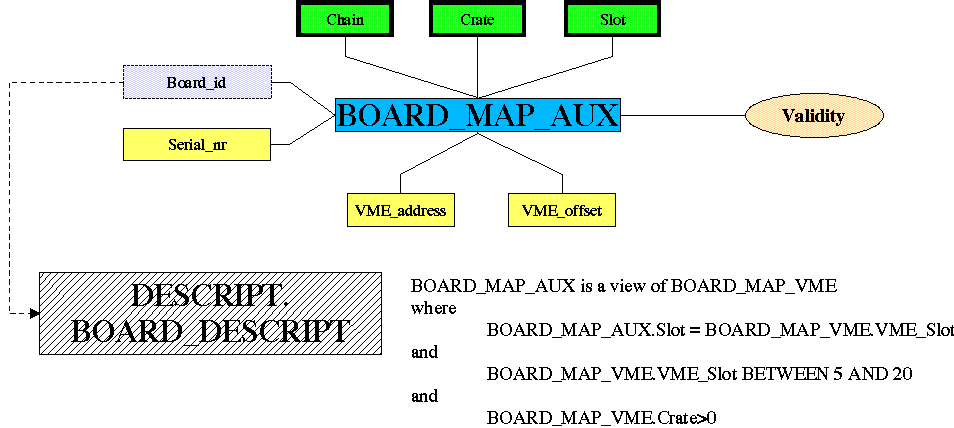

KLOEMAPS.BOARD_MAP_AUX (view) Field Type Nullable BOARD_ID SMALLINT N VME_OFFSET INTEGER N VME_ADDRESS INTEGER N UPDATE_USER_ID SMALLINT Y UPDATE_TIME TIMESTAMP Y START_OF_VALIDITY INTEGER N SLOT INTEGER N SERIAL_NR INTEGER Y INSERT_USER_ID SMALLINT N INSERT_TIME TIMESTAMP N END_OF_VALIDITY INTEGER Y CRATE SMALLINT N CHAIN SMALLINT N

---

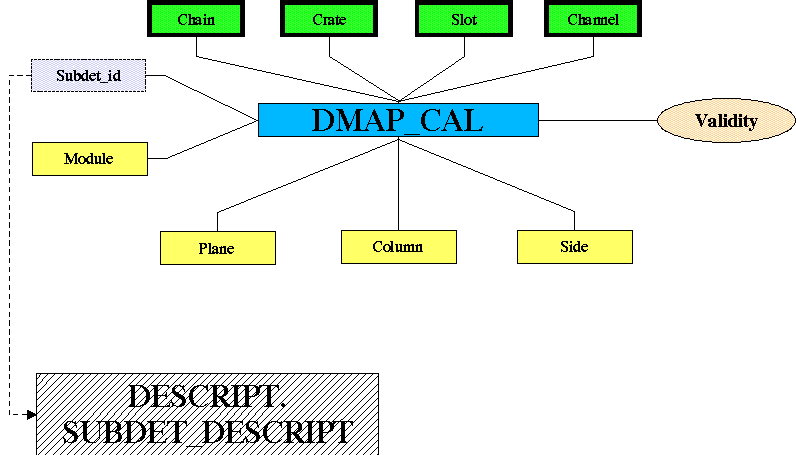

KLOEMAPS.DMAP_CAL Field Type Nullable CHAIN SMALLINT N CRATE SMALLINT N SLOT SMALLINT N CHANNEL SMALLINT N START_OF_VALIDITY INTEGER N INSERT_TIME TIMESTAMP N COLUMN SMALLINT N UPDATE_USER_ID SMALLINT Y UPDATE_TIME TIMESTAMP Y SUBDET_ID SMALLINT N SIDE SMALLINT N PLANE SMALLINT N MODULE SMALLINT N INSERT_USER_ID SMALLINT N END_OF_VALIDITY INTEGER Y

---

KLOEMAPS.DMAP_CHAMB Field Type Nullable CHAIN SMALLINT N CRATE SMALLINT N SLOT SMALLINT N CHANNEL SMALLINT N START_OF_VALIDITY INTEGER N INSERT_TIME TIMESTAMP N END_OF_VALIDITY INTEGER Y WIRE SMALLINT N UPDATE_USER_ID SMALLINT Y UPDATE_TIME TIMESTAMP Y LAYER SMALLINT N INSERT_USER_ID SMALLINT N

---

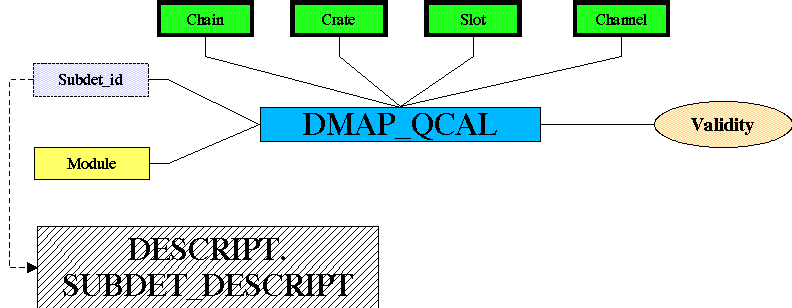

KLOEMAPS.DMAP_QCAL Field Type Nullable CHAIN SMALLINT N CRATE SMALLINT N SLOT SMALLINT N CHANNEL SMALLINT N START_OF_VALIDITY INTEGER N INSERT_TIME TIMESTAMP N END_OF_VALIDITY INTEGER Y UPDATE_USER_ID SMALLINT Y UPDATE_TIME TIMESTAMP Y SUBDET_ID SMALLINT N MODULE SMALLINT N INSERT_USER_ID SMALLINT N

---

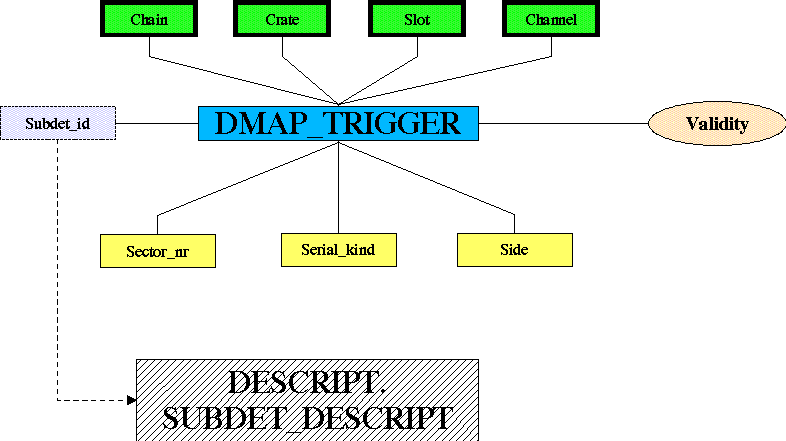

KLOEMAPS.DMAP_TRIGGER Field Type Nullable CHAIN SMALLINT N CRATE SMALLINT N SLOT SMALLINT N CHANNEL SMALLINT N START_OF_VALIDITY INTEGER N INSERT_TIME TIMESTAMP N END_OF_VALIDITY INTEGER Y UPDATE_USER_ID SMALLINT Y UPDATE_TIME TIMESTAMP Y SUBDET_ID SMALLINT N SIDE SMALLINT N SERIAL_KIND SMALLINT N SECTOR_NR SMALLINT N INSERT_USER_ID SMALLINT N

---

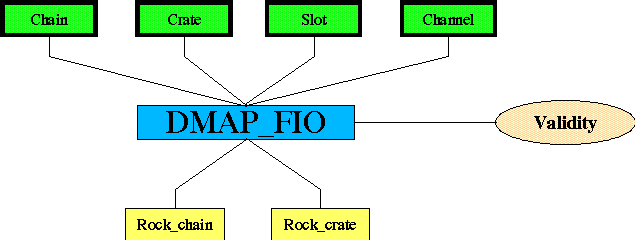

KLOEMAPS.DMAP_FIO Field Type Nullable CHAIN SMALLINT N CRATE SMALLINT N SLOT SMALLINT N CHANNEL SMALLINT N START_OF_VALIDITY INTEGER N INSERT_TIME TIMESTAMP N END_OF_VALIDITY INTEGER Y UPDATE_USER_ID SMALLINT Y UPDATE_TIME TIMESTAMP Y ROCK_CRATE SMALLINT N ROCK_CHAIN SMALLINT N INSERT_USER_ID SMALLINT N

---

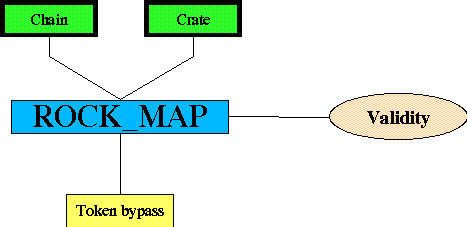

KLOEMAPS.ROCK_MAP Field Type Nullable CHAIN SMALLINT N CRATE SMALLINT N START_OF_VALIDITY INTEGER N INSERT_TIME TIMESTAMP N END_OF_VALIDITY INTEGER Y UPDATE_USER_ID SMALLINT Y UPDATE_TIME TIMESTAMP Y TOKEN_BYPASS SMALLINT N INSERT_USER_ID SMALLINT N

---

KLOEMAPS.DISH_MAP Field Type Nullable CHAIN SMALLINT N CRATE SMALLINT N SLOT SMALLINT N START_OF_VALIDITY INTEGER N INSERT_TIME TIMESTAMP N END_OF_VALIDITY INTEGER Y UPDATE_USER_ID SMALLINT Y UPDATE_TIME TIMESTAMP Y TRESHOLDS BLOB N LOGIC SMALLINT N INSERT_USER_ID SMALLINT N

---

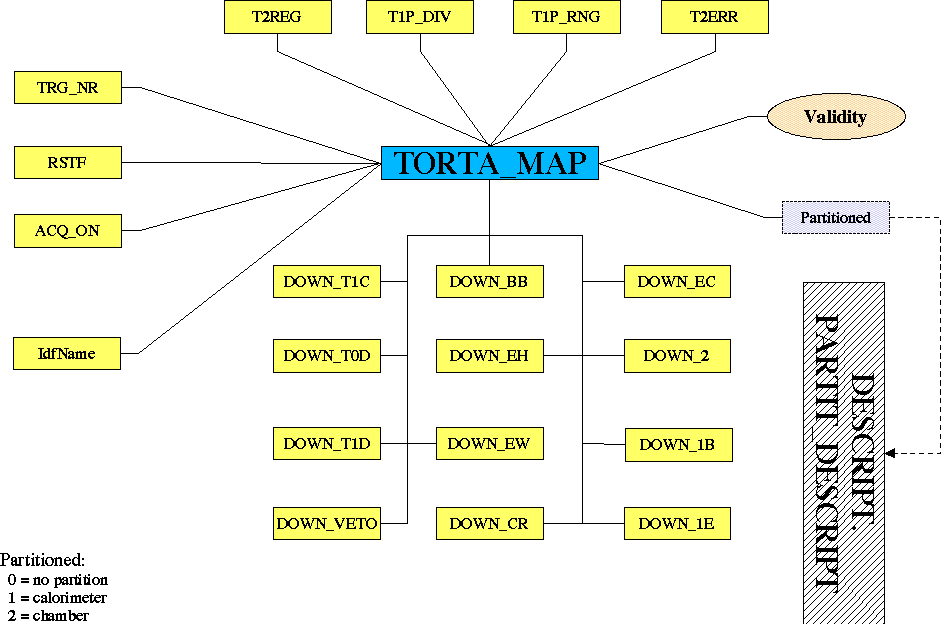

KLOEMAPS.TORTA_MAP Field Type Nullable START_OF_VALIDITY INTEGER N INSERT_TIME TIMESTAMP N ACQ_ON INTEGER N UPDATE_USER_ID SMALLINT Y UPDATE_TIME TIMESTAMP Y TRG_NR INTEGER N T2REG INTEGER N T2ERR INTEGER N T1P_RNG INTEGER N T1P_DIV INTEGER N RSTF INTEGER N PARTITIONED SMALLINT N INSERT_USER_ID SMALLINT N IDFNAME VARCHAR(16) Y END_OF_VALIDITY INTEGER Y DOWN_VETO INTEGER N DOWN_T1D INTEGER N DOWN_T1C INTEGER N DOWN_T0D INTEGER N DOWN_EW INTEGER N DOWN_EH INTEGER N DOWN_EC INTEGER N DOWN_CR INTEGER N DOWN_BB INTEGER N DOWN_2 INTEGER N DOWN_1E INTEGER N DOWN_1B INTEGER N

---

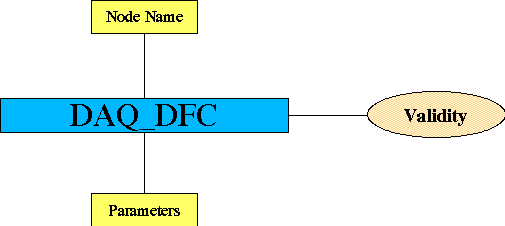

KLOEMAPS.DAQ_DFC Field Type Nullable START_OF_VALIDITY INTEGER N INSERT_TIME TIMESTAMP N END_OF_VALIDITY INTEGER Y UPDATE_USER_ID SMALLINT Y UPDATE_TIME TIMESTAMP Y PARAMETERS VARCHAR(128) N NODE_NAME VARCHAR(32) N INSERT_USER_ID SMALLINT N

---

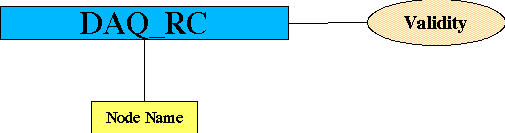

KLOEMAPS.DAQ_RC Field Type Nullable START_OF_VALIDITY INTEGER N INSERT_TIME TIMESTAMP N END_OF_VALIDITY INTEGER Y UPDATE_USER_ID SMALLINT Y UPDATE_TIME TIMESTAMP Y NODE_NAME VARCHAR(32) N INSERT_USER_ID SMALLINT N

---

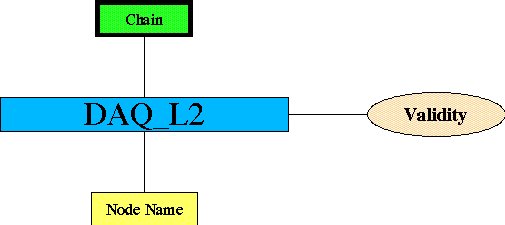

KLOEMAPS.DAQ_L2 Field Type Nullable CHAIN SMALLINT N START_OF_VALIDITY INTEGER N INSERT_TIME TIMESTAMP N END_OF_VALIDITY INTEGER Y UPDATE_USER_ID SMALLINT Y UPDATE_TIME TIMESTAMP Y NODE_NAME VARCHAR(32) N INSERT_USER_ID SMALLINT N

---

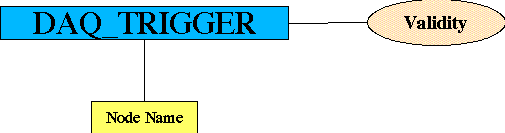

KLOEMAPS.DAQ_TRIGGER Field Type Nullable START_OF_VALIDITY INTEGER N INSERT_TIME TIMESTAMP N END_OF_VALIDITY INTEGER Y UPDATE_USER_ID SMALLINT Y UPDATE_TIME TIMESTAMP Y NODE_NAME VARCHAR(32) N INSERT_USER_ID SMALLINT N

---

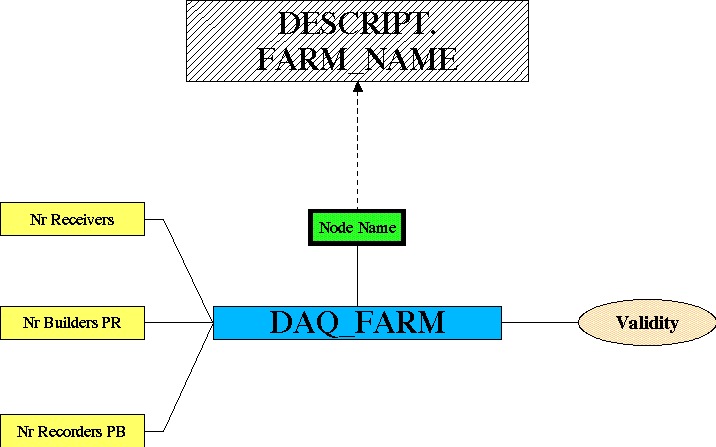

KLOEMAPS.DAQ_FARM Field Type Nullable NODE_NAME VARCHAR(32) N START_OF_VALIDITY INTEGER N INSERT_TIME TIMESTAMP N END_OF_VALIDITY INTEGER Y UPDATE_USER_ID SMALLINT Y UPDATE_TIME TIMESTAMP Y NR_RECORDERS_PB SMALLINT N NR_RECEIVERS SMALLINT N NR_BUILDERS_PR SMALLINT N INSERT_USER_ID SMALLINT N

---
