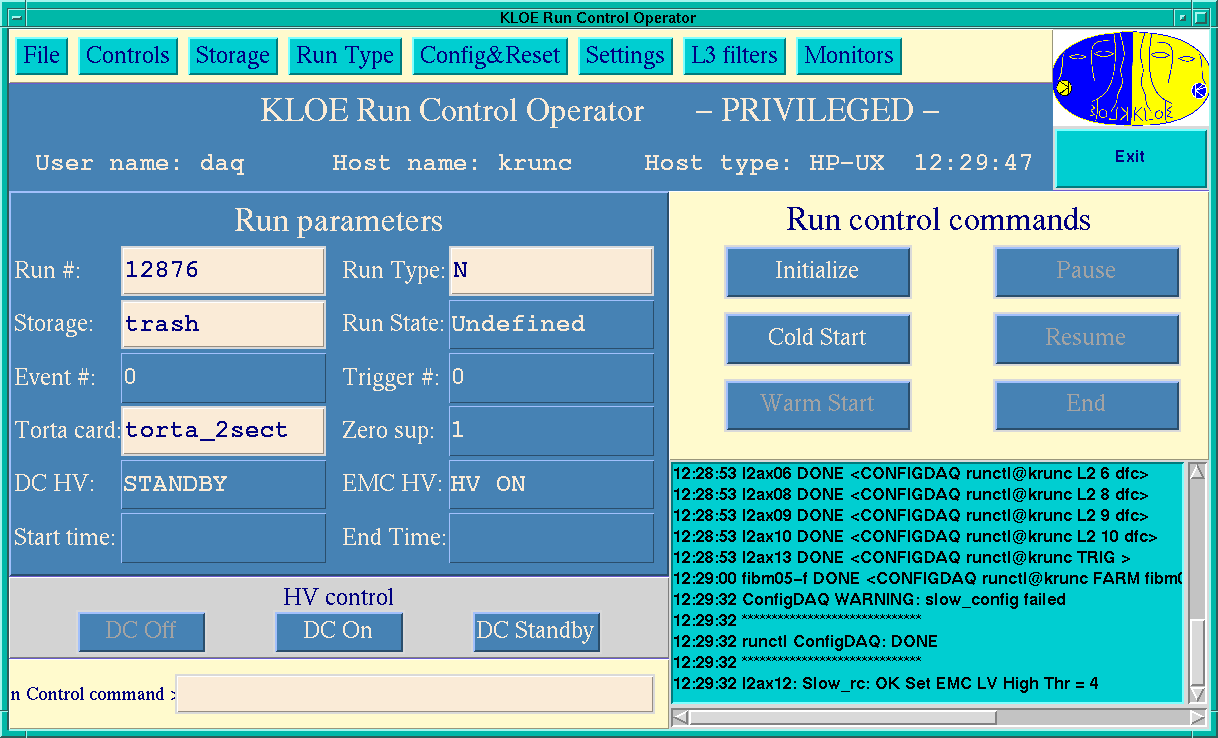

The operator menus allow to perform all the operations related to the run,
but not directly interacting with the data taking process: set system parameters,
make configurations, reset system, start test and monitoring tools, and
so on.
Some operations are only enabled before data taking starts.
2)
Run parameters
The most relevant run parameters and variables are displayed in this area.
The Run Number is automatically incremented by the system.
Run Type, Storage device and Torta card can be chosen from the menu buttons.
The other values are obtained by the system processes.
3)
Run control commands
These buttons activate the standard run
control commands, that cause the run state transitions:
Initialize - distribute
INIT to the system
Warm Start - distribute INIT then START to the system
Cold Start - distribute START to
the system (only enabled when the system is INITIALIZED)
Pause
- distribute PAUSE to the system (only enabled when the system is
RUNNING)
Resume - distribute
RESUME to the system (only enabled when the system is PAUSED)
End
- distribute END to the system (only enabled when the system is RUNNING)
4)
Drift Chamber HV control
These buttons set Drift Chamber HV, sending commands to the Slow Control.
5)
Run control command line
The command line allow to send "non standard" commands to runctl. Only for expert use.
6) Log message window
The scrollable window receives all the log messages sent by the DAQ
processes to the operator,
communicating success or errors in command execution and
errors while running. The same information is recorded in the logfiles
/runcond/runlog/runXXXXXTYPE.log
