Replacing a fuse on the CAEN HV units

These units are very sensitive to the outlet power, and very often a fuse blows up.
This means that 128 LAC channels will be out from Daq.

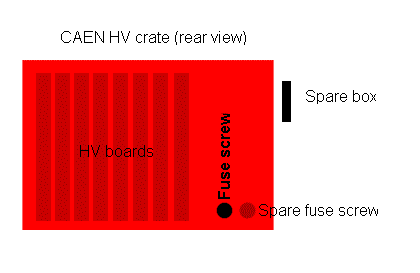

The fuse screw is located on the back of the CAEN unit
as shown below:


To replace the fuse take out the fuse screw. Another fuse should be available
into the spare screw, or into a small paper box attached on the side of the crate.
